How to Choose the Right Protection Method for Hazardous Location Control Panels

24 Aug 2026

A Look at the Fundamental Requirements and Four Most Common Protection Methods used in North America

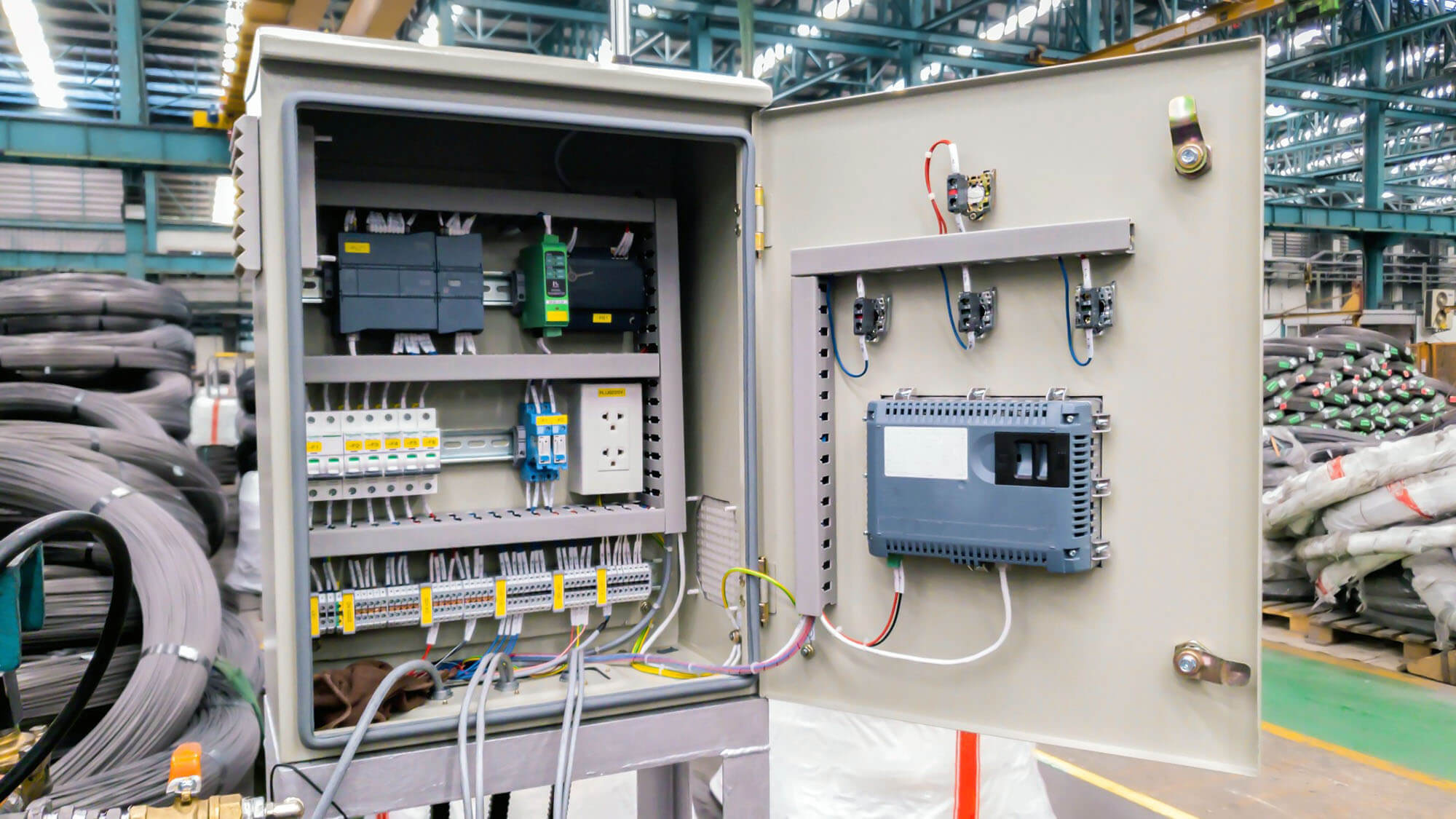

Industrial control panels are widely used to power, monitor, and control automation systems across a wide range of industries. When these panels are installed in hazardous locations containing flammable gases, vapors, or combustible dust, they must be designed to eliminate potential ignition sources and comply with applicable hazardous location standards.

Selecting the appropriate protection method is critical to achieving regulatory compliance, ensuring reliable system operation, and protecting personnel and equipment. This blog provides an overview of the fundamental requirements for hazardous location control panels and introduces the four most common protection methods used in North America for hazardous area control panel design.

1. Intrinsically Safe (IS) Circuit Extensions

Intrinsic Safety is commonly used for low-power instrumentation such as sensors and transmitters. Instead of containing an explosion, this method prevents ignition by limiting the electrical energy available in hazardous areas.

A typical intrinsically safe panel includes certified IS barriers that isolate safe-area equipment from field devices installed in hazardous locations.

Key design considerations include:

• Certified intrinsic safety barriers
• Verification of entity parameters
• Physical separation between IS and non-IS wiring
• Clearly identified IS terminals and wiring

Because ignition is prevented at the source, intrinsic safety is widely used in Class I Division 1 applications where continuous hazardous atmospheres may exist.

2. Nonincendive Control Panels

Nonincendive control panels are intended primarily for Division 2 hazardous locations, where explosive atmospheres are only expected during abnormal operating conditions.

This protection method relies on equipment that does not produce ignition-capable sparks, arcs, or excessive temperatures during normal operation.

When designing a nonincendive panel, engineers should:

• Select Division 2 certified components whenever possible.
• Verify gas group compatibility and temperature classification.
• Use appropriate dust-tight enclosures for combustible dust applications.

Compared with Division 1 solutions, nonincendive panels are generally simpler and more cost-effective while still providing reliable protection.

3. Explosion-Proof and Dust-Ignition-Proof Panels

Explosion-proof enclosures are designed to safely contain an internal explosion and prevent flames from igniting the surrounding hazardous atmosphere.

Unlike intrinsic safety, this protection method assumes an ignition could occur inside the enclosure and focuses on preventing it from spreading.

Successful designs require:

• Certified explosion-proof or dust-ignition-proof enclosures
• Hazardous location-rated accessories such as pushbuttons and cable glands
• Proper conduit sealing
• Adequate internal spacing to prevent pressure buildup

Explosion-proof construction remains one of the most widely used solutions for Class I Division 1 environments because of its proven reliability in harsh industrial applications.

4. Purged and Pressurized Enclosures

Purged and pressurized systems protect ordinary industrial equipment by maintaining clean protective gas inside the enclosure at a pressure higher than the surrounding atmosphere.

The continuous positive pressure prevents hazardous gases or combustible dust from entering the enclosure, allowing conventional electrical equipment to be used safely.

A typical purge system includes:

• A purge controller
• Pressure monitoring devices
• Alarms and indicators
• Certified external accessories

If enclosure pressure is lost or the enclosure is opened, the purge cycle must be completed before power can be restored.

This method is especially suitable for large control systems where using explosion-proof components throughout the enclosure would be impractical.

Choosing the Right Protection Method

Each protection concept is designed for different applications.

• Intrinsically Safe: Best for low-power instrumentation and field devices.
• Nonincendive: A practical solution for Division 2 installations.
• Explosion-Proof: Ideal for high-risk Division 1 hazardous areas.
• Purged and Pressurized: Allows standard industrial equipment to operate safely in hazardous environments.

Selecting the appropriate method depends on the hazardous area classification, equipment type, maintenance requirements, and overall project objectives.

Conclusion

Hazardous location control panel design involves much more than selecting certified components. Engineers must consider applicable standards, enclosure construction, wiring practices, product markings, documentation, and testing throughout the entire design process.

By understanding the advantages and limitations of each protection method, manufacturers and system integrators can develop safer, more reliable, and compliant control panel solutions for hazardous environments.
